Latest revision as of 18:13, 20 December 2024
Overview

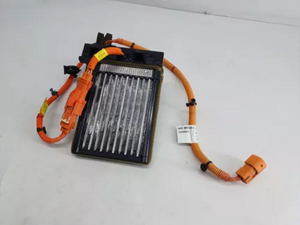

PTC Air heater assembly found in MG EVs (ZS, MG4, MG5).
Heater is controlled by LIN.
Part Numbers
| MG Part Number | Vehicles Used it | Tested? |
|---|---|---|
| 10606761 | ZS | No |
Connectors
Low Voltage/Control

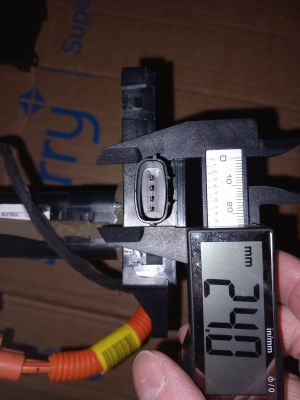

Unidentified - see image
Pinout
| Pin | Cross Section | Colour | Function |
|---|---|---|---|
| 2 | 0.35 | Green/White | + |
| 3 | 0.35 | Pink/Black | LIN |
| 4 | 0.35 | Black | GND |
