Latest revision as of 22:04, 9 February 2025
https://www.youtube.com/watch?v=zuPvgzQt6XQ
Requirements

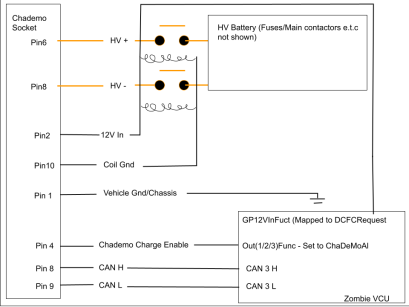

- Chademo Socket
- 2 Contactors for Chademo use
- Zombie VCU
- Jumper settings for HS CAN3. Solder SJ6, SJ7, SJ8 and SJ9, as per the instructions on the back of the board. Additionally Solder SJ5 and SJ10 for CAN3 Termination.
- Chademo set to Charge Control interface in the UI
- An output set to ChaDeMoAl
- GP12VINFuct set to DCFCRequest in the UI
.png)
