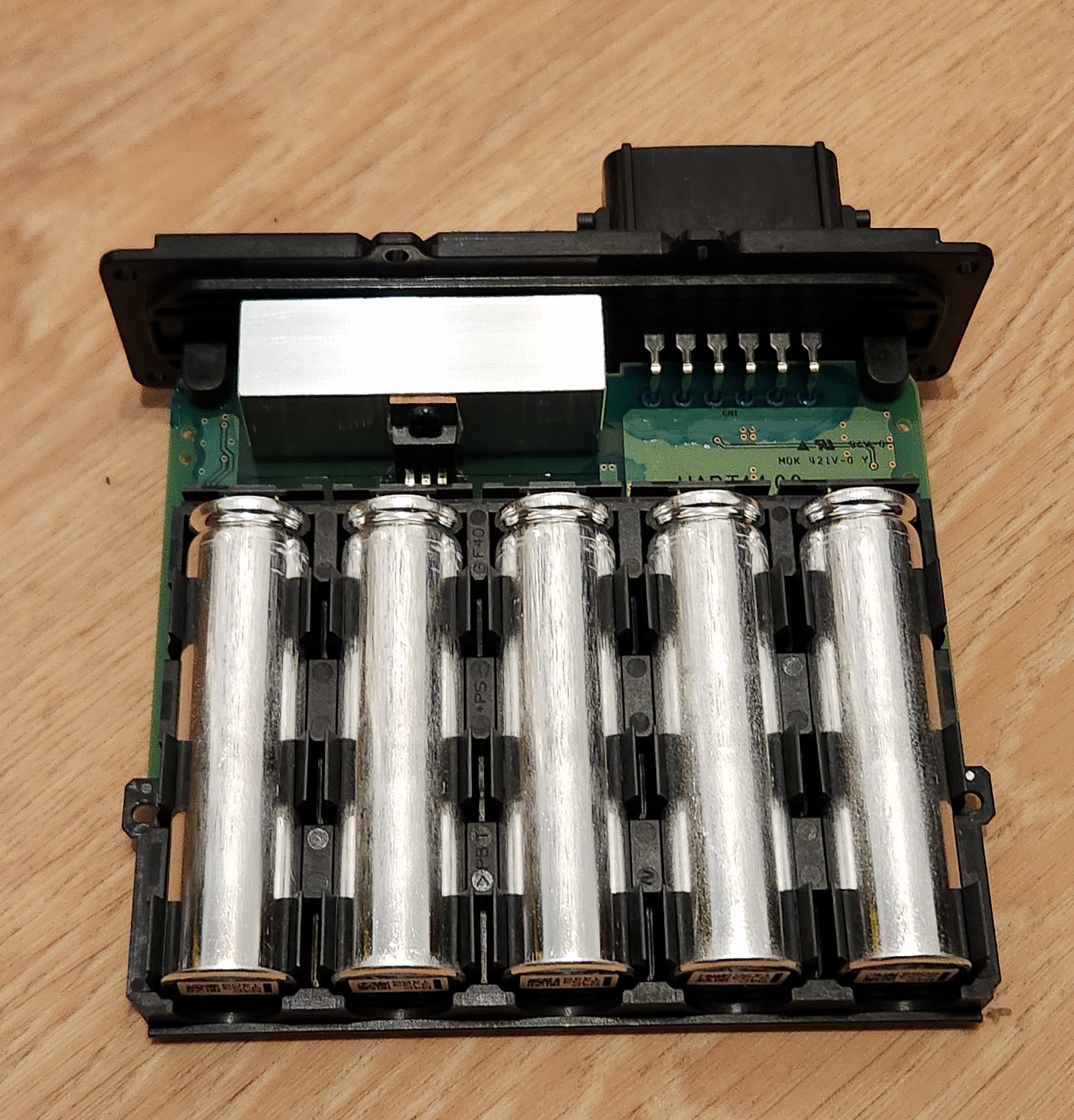

I'd say these are supercaps. But I can't say what capacity as there are no labels and I did not desolder one to test.

Currently I'm trying to decided which Motor + inverter / Stack I want to use for an upcoming conversion.
I have every HV component from a Gen1 Leaf and a separate Gen2 Stack with 6kW Charger.
I would like to compile a Pro / Con List for each motor (maybe extend to Gen3 later as I don't own one ...

Very nice project. I read through it and I really like the car choice and also the way the EV HW was integrated.
My favorite part is the motor hood made from a shovel :D

Any chance to see the schematics + sw of the Park actuator board?
I'm interesed in the Mosfets used to control the motor

Keep ...

itiuk wrote: ↑Fri Jan 03, 2025 8:47 pm I might buy a second one to tear apart if sniffing is unsuccessful.

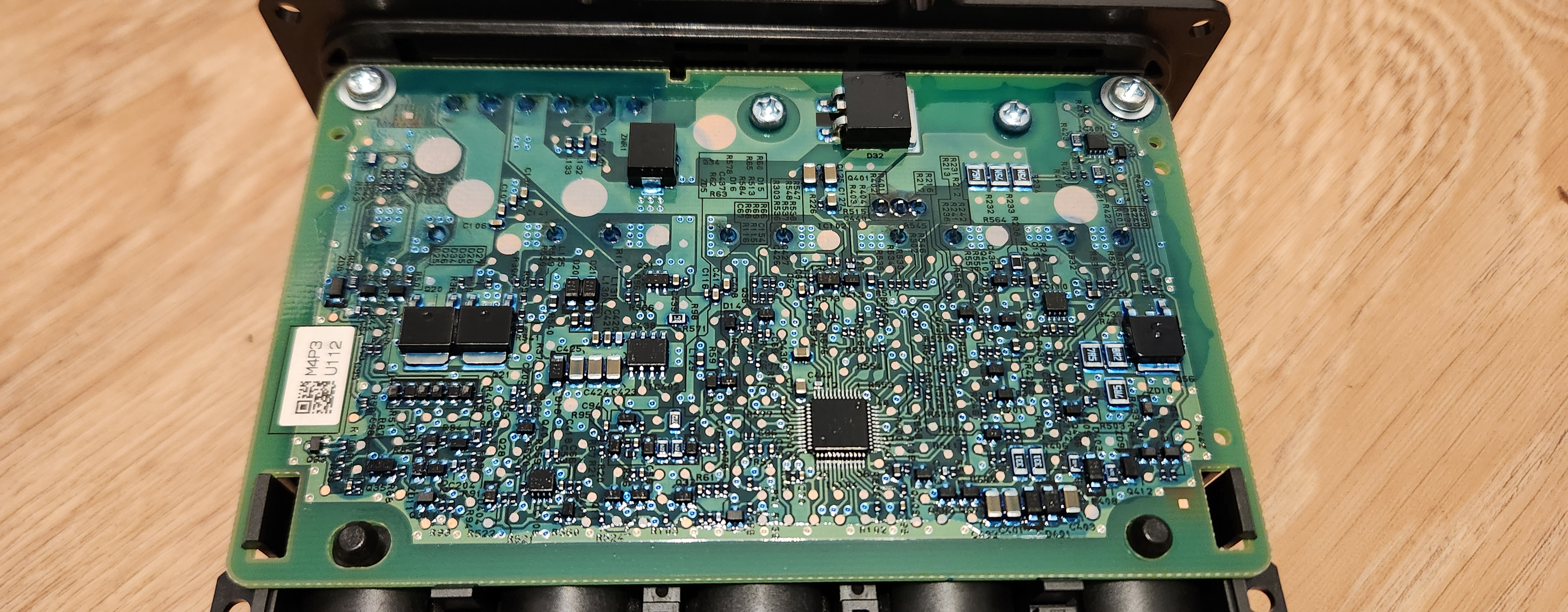

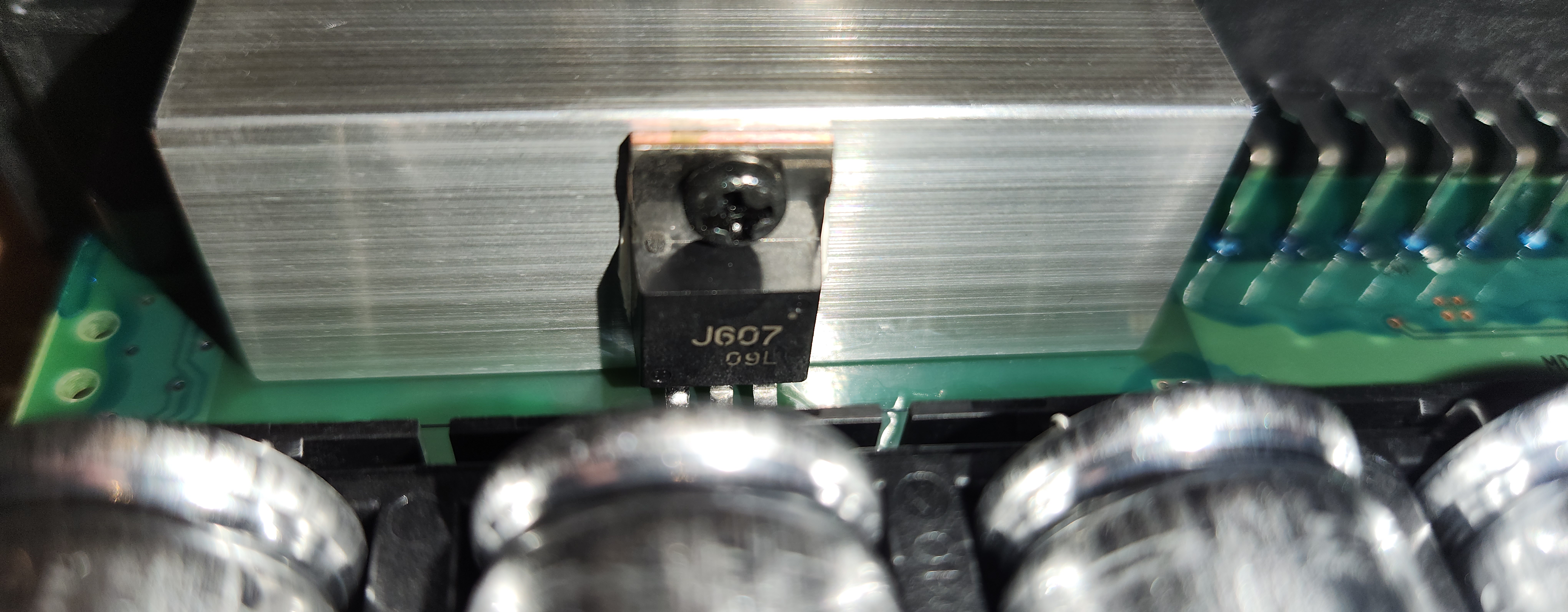

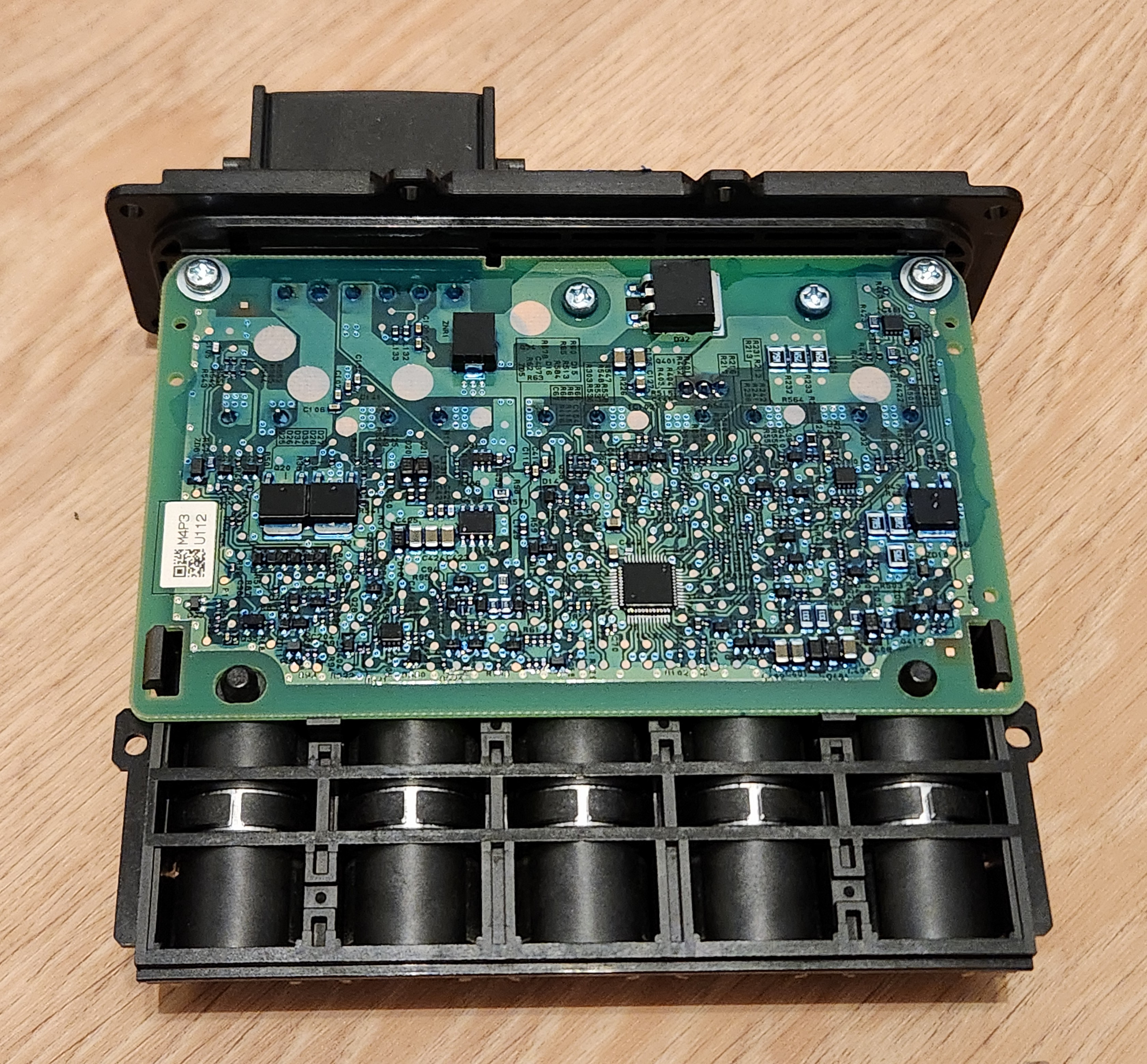

I took one apart and the safety power supply part is kind of obvious:

Look you can work it out how you want. Zombie does not take the Chademo CAN in and talk the right CAN back to an EV, nor does it control the charger side signals required for Chademo.


Got it thank you. I misunderstood something I see ...


This project seems quite out of your current skill set ...

My thought was that the contactors for chademo in the PDM can be switched via CAN so no direct wiring would be necessary. There are chademo to ccs adapters that achieve similar things.
Foccci can be used as such a converter according to the wiki.

To check if I got it right:
I3 lim can do the DC ...

Ok one more time but less excited :D

I've got a Gen2 Leaf PDM, Motor and Inverter + zombieverter.
I want to add CCS charging to that stack so AC charging is handled by the PDM as usual and DC charging is handled by I3 LIM + the internal contactors of the Leaf PDM.
I thought it might be possible to ...

tbh I wouldn't be surprised about subtle differences when firmware is compiled with a different version of the compiler or supporting libs


Makes sense. Thank you.



Thanks for testing.
Sounds like some settings are different or md5 is not suited for comparison?
I will try with SHA as well and ...

Sorry for borrowing the title for this subject from https://openinverter.org/wiki/Foccci :D

Does the CAN mapping apply to i3 LIM module as well when using a ZombieVerter and a Leaf PDM? Problem seems that the I3 LIM can't be configured to map can messages, like Foccci can. But is it possible that ...

Thanks for testing.
Sounds like some settings are different or md5 is not suited for comparison?
I will try with SHA as well and report

To be more specific when I md5sum the 2.22A release bin file I get f049762ab6cfb0777ef8c31f59aeab1f
but when I compile it from commit 7a57524 (which should be the release commit, right?) I get 8d15f08ceef0c9ef8b0ed68567abb421

tom91 wrote: ↑Tue Jul 08, 2025 1:53 pm Have a look at functions/parameters that do something similar.
"easy example"
Param Output Function: CoolingFan
Param: FanTemp

That's something I can work with. Thank you for the explanation.

Sounds good. I'll try that out and report if successful.
Shouldn't be a problem if 2Hz is possible.

What would be the "right" way (or position in code) to implement a temperature set point feature?

I know I asked a lot of those questions lately but I really want to learn about the OI environment ...

here's the wiki page for reference: https://openinverter.org/wiki/Tesla_Model_S/X_Coolant_Pump



If you have a Zombieverter VCU I believe it can output the PWM required. I've not tried it yet but will report back when I do.


I would like to run these pumps from zombie too. Where to start in the ...

Oh I missed that link ...
thanks for pointing me in that direction!

so this current value can be used for things like CCS by mapping the current value to the right message of lets say Foccci.


Thanks everything clear on my side now!

johu wrote: ↑Mon Jul 07, 2025 11:44 am The LeafBMS has a current sensor connected to it. There is no separate junction box logic.

Great. And does the BMS report the current values to the CAN Bus? If so I would like to add this information to Nissan Leaf Wiki pages, as I think that's something to consider.

The BMS is i know.
But does it use the current sensor in the junction box? It may or may not I don't know that's why I asked. Sorry maybe I did't find the right words to express what I was trying to say...

The Leaf BMS is included but where is the information about the current sensor?

When reading ...

Right, but as far as I know the last release made use of the voltage value provided by leaf interver.
Is the current value of the junction box also used? I don't think so as it is connected to the BMS and is never mentioned anywhere, so I thought it might be worth talking about it

Ok thank you for the quick clarification.
The leaf current sensor is a normal hall sensor but with a small offset (0A => 3.25V, instead of expected 0A => 2.5V with normal 5V logic hall sensors).

So basically an ADC reading would suffice but the value needs to be mapped to CAN. This is option 1 ...

I was wondering whether we could use the current sensor of a leaf contactor box that is connected to the Leaf BMS?
The leaf inverter can measure the voltage for precharge so an IVT is not strictly necessary anymore.
Current measurement is needed for CCS and general limits but needs to be implemented ...

Hello,
I compiled the current version of Zombieverter VCU firmware from https://github.com/damienmaguire/Stm32-vcu/releases/tag/2.22a
it loads the deps and compiles without problems. But when I compare the Hashes (md5) of my compiled .bin and the release bin they differ.

first i compiled the master ...

It is not usual practice in an EV, so can be removed at some point. Needs a bit of rework anyway.


by adding something like DigIo::prec_out.Clear(); to MOD_RUN?



case MOD_RUN:

if(rlyDly!=0) rlyDly--;//here we are going to pause before energising precharge to prevent too many contactors ...

tom91 wrote: ↑Thu Apr 10, 2025 6:02 pm Yes the precharge stays on.

But why?

same issues here. Sometimes it shows the same message with my setup (Zombie + Leaf Gen2).
It seems to reconnect by it self so never had problems with it but I wanted to +1 this issue.

one thing i came to notice is that the zombiverter leaves the precharge relay engaged and never turns off after the main contactor is active. Was surprised to see that.

This is a different behavior compared to the original leaf VCU. This turns precharge off, some seconds after the main contactor ...
