by the sounds of it, the inverter on the motor probably had issues in the past and the quick and lazy way was to swap the inverter and BDC from a working car to keep the immo data matched.

when you reprogrammed it you changed that to the data of the original car on the BDC which does not match the ...

looks interesting, price is defo on the good side. on the listing the datasheet shows the pin-out wiring for the unit so wiring wont be diffcult.

question will be is it configured by can or serial

looking on the company website the software is available to download so worth trying to download it ...

im tempted to buy one of the following and reverse engineering it.

https://www.onlyda.com/product-p26807141.html

or

https://www.botongautoelectronics.com/product-page/48v-audi-testing-platform-start-and-generator-for-audi-alternator

or

http://ebay.co.uk/itm/405899320374

might be abit quicker ...

Hi, great project.

couple things the id3 and id4 has two heaters one water cooled and one air heater. so need to check the Lin ids. also the the heaters cant run as the battery HV would be switched off.

but great to see the progress. i will test both ids ok the air PTC heater i have to see if ...

hi has anyone made progress on this, im building an autonomous Ami and can control the motor but need help with the CRC check as this is causing some problems

https://www.youtube.com/watch?v=8s7G3eyFGDw

it uses an IBSG just like the vw/audi

messages are send to address 0x3c0, byte 0 is CRC byte 1 ...

Hi, Iv been working on converting an ami into a automonus vehicle. i can now control the motor and battery independently of the ecu



but can do with some help with the CRC check for the motor

here are the messages the abs sends

as far as i remember the ABS works without many additional canbus messages,(defiantly standalone on the mk3 golfs) the ESP sends out max torque request to the ECU which you don't have so just getting ignored. i cant remembered if it looks for a reply from the ECU.

so your abs should work, your ASR ...

Hi,

been a while since i looked at this try send messages on id 320 bytes 4/5 for speed.

Hopefully that helps

Hi would probably be interested in a couple 12s vw modules, how much would postage to london be ?

Hi, just checking was this working before and has now stopped ?

if so normally these pumps have a 3rd wire which is wired to IGN, probably best to check that its still got the IGN 12V signal.

the vw version of this pump has been known to fail from time to time and it might just need replacing.

modellfan wrote: ↑Sat Mar 30, 2024 4:59 pm I am wondering the same. Which one is coolant input ? WHich one is coolant output? Which orientiation does it have in the car?

Hi, if this is for the HV heater i posted the answer on the correct post below

viewtopic.php?p=69292#p69292


hope that helps

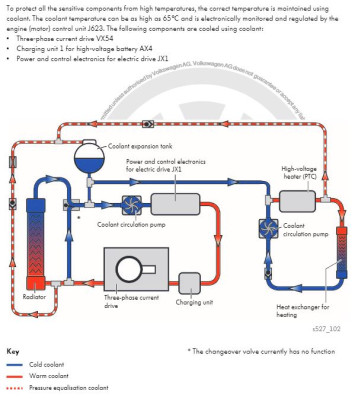

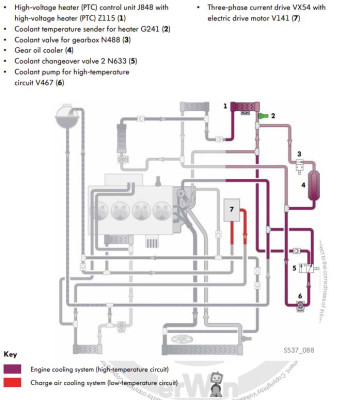

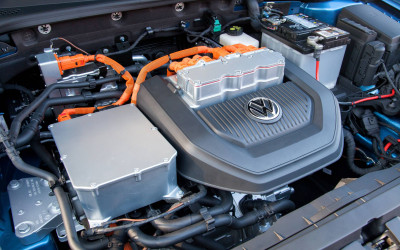

Hi, looks like the coolant to heater is the lower pipe and heater to heater matrix is normally the top, depending on which way you heater is mounted. this is the diagrams from a e-golf and golf gte

E-Golf Golf GTE

i pulled these from the LDF files on the site.

looks like there an extra value we can transmit which is ramp rate in a unit of watts per second.


PTCe_01: 28, HCP4_uC2_1, 4 {
TME_NV_PTC_soll, 0;
TME_NV_PTC_ein, 8;
TME_NV_PTC_Rampe, 9;
}
PTCs_01: 48, PTC1, 8 {
NV_PTC_I_ist, 0;
NV_PTC_P_ist ...

I'm confused. have you sent an output of 100% to your heater and only got an output of 2.5kw ? if so can i ask what voltage you where running the heater at ? as it does have a recommended power range.

muehlpower, thank you for all your work on this.

Seeing the spec of the heater being upto 5/7kW. The LIN control message only has on byte for power level request, this means we can only request 2.5kW. Has anyone been able to get more out of the heater then the 2.5kW.

Is it possible that Byte ...

Hi,

CAN bus and LIN run in different ways. Lin is a lot simpler. On CAN once the module has power it will constantly transmit its data regardless of if anything is listening.

Lin works on a master/slave principal. so the master module has can transmit any control data it wants. but the slave ...

looking at the circuit board it looks like it should be bi directional. think vwbrady mentioned it was linbus controlled so should be easy to control. if anyone has a merc we can connected to we can log the linbus and easily be able to control both the battery and dc converter saving tearing these ...

The HVIL or interlock is just a safety line which is used to shutdown the entire HV system if any part is unplugged. most modules this is just a pass thru the battery module is the originator. there has to be two 75ohm resistors (or one 150ohm) two emulate the motor and inverter

A crash signal is ...

hi as we don't have a Mercedes section i put this in general. has anyone tried this 48v battery with 12v dcdc converter ontop?

looks quite interesting. looks like a bi directional dc converter going from 48 to 12v

found these images on this site https://forum.esk8.news/t/mercedes-oem-l09-1-ev ...

I have attempted to log the powertrain data from an id3 but unfortunately it uses CAN-FD. now just waiting on a new can to usb with FD compatibility. also from what i read the module might have component protection rendering it useless.

I got my hands on an electric liquid cabin heater from a BMW F30 330E. I think its around 5kW. No idea about wiring and control yet. HV positive and neutral are through the large orange cable. Its has a thermostat on the outlet pipe. A 3 cable (Brown, brown/red & brown/white) connector then on top ...

Ok that makes sense which bytes to send for which

now whets the difference between start and Activate ?

and there is a different byte for the RPM (speed) Byte 0

I'm making the HW ready and have a compressor laying around

will try to send it at low RPM and see what happens since it isnt ...

Does anyone have a working code for heater control they are willing to share? still trying to get my head around lin bus and would love to see how others have implemented it, Thanks



After making lots of adaptors and brackets im ready to start testing my AC setup. I decided to use a watercooled ...

Hi all,

i have come across a EVCC from EV designs. price doesn't sound terrible

https://www.evdesigns.co.uk/evcc

what do you think ?
